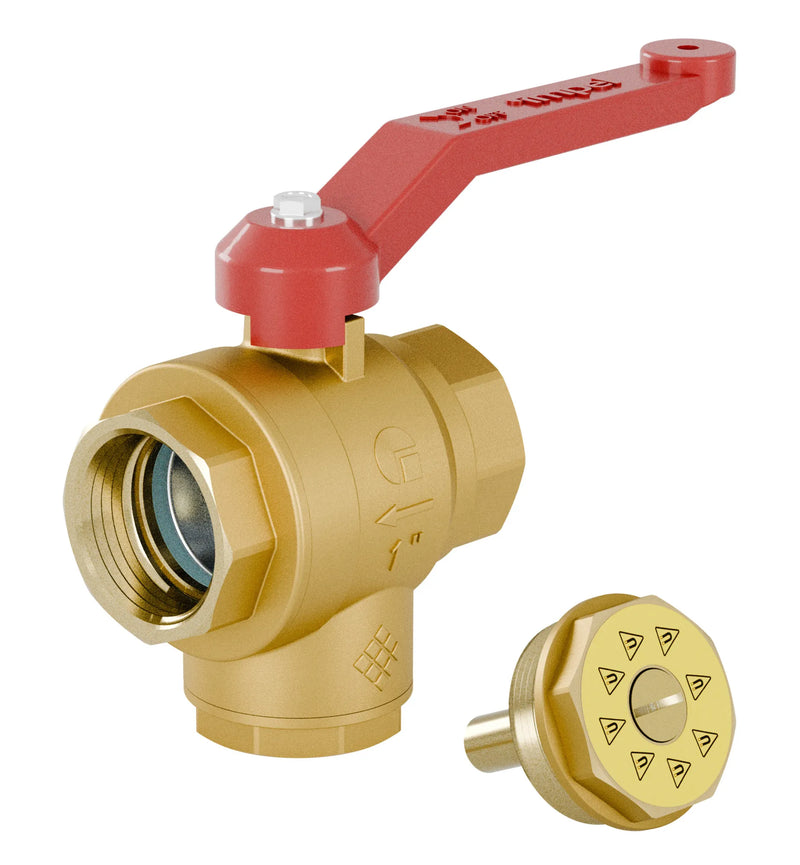

Filter ball valve 496

by Impel EN AB
Ball valve with strainer mesh 0.6 mm and magnet for collecting magnetite. Connection female thread or compression fitting. Easy to clean, shut off valve with the handle, remove strainer and clean, loosen the magnetic rod and remove the magnetite from the plug, reassemble the strainer and open valve. The valve is equipped with a smart fitting of the strainer that causes it to leak immediately if the strainer is not reassembled correctly. This is to ensure the function of the valve.
Material: Brass. Working Temperature: -20ºC/+100ºC. Max Working Pressure: 16 bar.
ArtnrConnectionLength mmWeight kgDescriptionKv (m3/h)
0449602000
3/4"F650,45Filter ball valve 496 3/4"F magnet 0.6mm strainer, lever6,8
0449602200
22 mm920,54Filter ball valve 496 CU22mm magnet 0.6mm strainer, lever6,8
0449602500
1"F720,61Filter ball valve 496 1"F magnet 0.6mm strainer, lever12,4
0449602800
28 mm101,30,76Filter ball valve 496 CU28mm magnet 0.6mm strainer, lever12,4
0449603200
1 1/4"F891,11Filter ball valve 496 1 1/4"F magnet 0.6mm strainer, lever20,8
0449604000
1 1/2"F102,51,62Filter ball valve 496 1 1/2"F inv magnet 0.6mm strainer leve35
0449605000
2"F1192,62Filter ball valve 496 2"F magnet 0.6mm strainer, lever52,9
