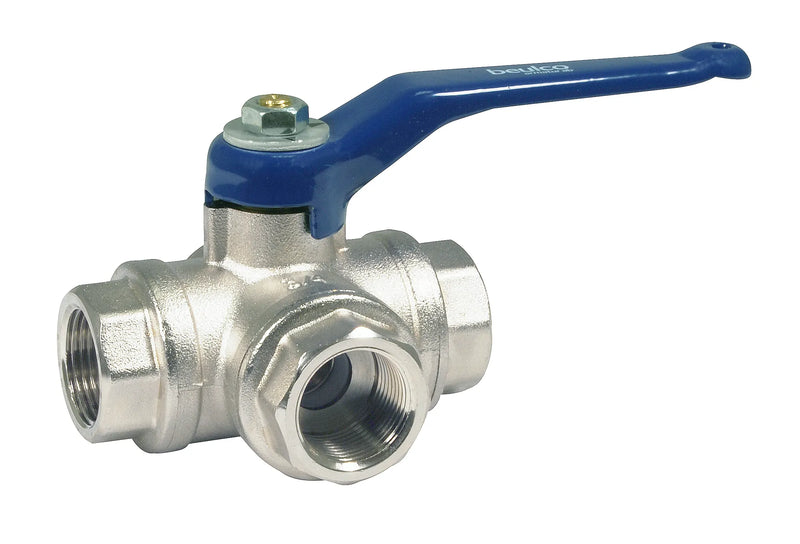

Ball valve 7620L

by Impel EN AB

Material: Nickel-plated brass. Working Temperature: -10ºC/+100ºC. Max Working Pressure: 40 bar.

Artnr	Connection	Length mm	Type	Weight kg	Description
0476201100	3/8"F	76	L	0,64	Ball valve 7620L-10, 3/8"F, handle, L-bore
0476201150	1/2"F	90	L	0,63	Ball valve 7620L-15, 1/2"F, handle, L-bore
0476201200	3/4"F	106	L	0,86	Ball valve 7620L-20, 3/4"F, handle, L-bore
0476201250	1"F	122	L	1,48	Ball valve 7620L-25, 1"F, handle, L-bore
0476202150	1/2"F	90	T	0,86	Ball valve 7620T-15, 1/2"F, handle, T-bore
0476202200	3/4"F	106	T	1,48	Ball valve 7620T-20, 3/4"F, handle, T-bore
0476202250	1"F	122	T	1,99	Ball valve 7620T-25, 1"F, handle, T-bore
0476202251	1"F	122	T	1,99	Ball valve 7620T-25, 1"F, handle, T-bore 180
