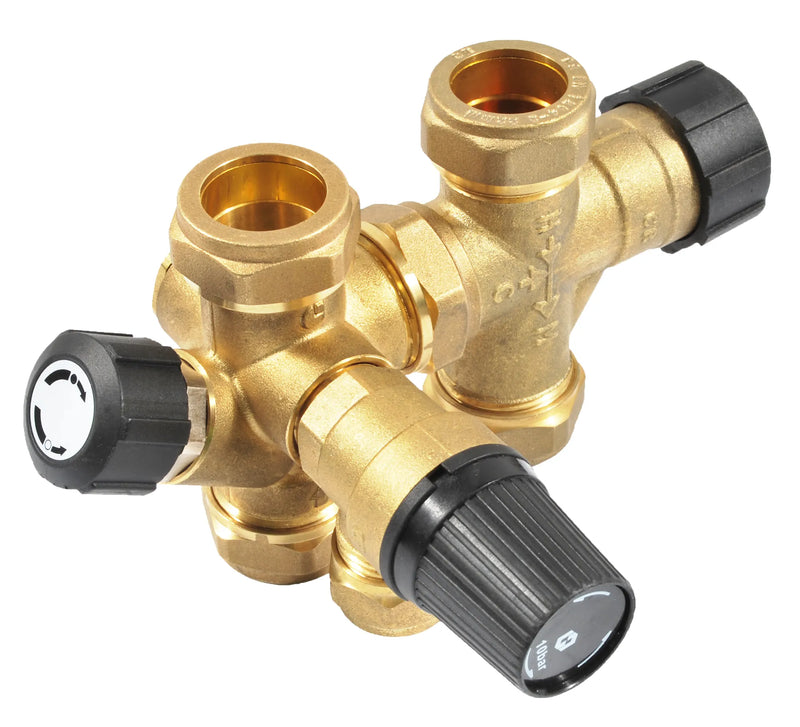

Shut-off check valve combination 5171

by Impel EN AB

Material: Dezincification resistant brass. Working Temperature: +2ºC/+90ºC. Max Working Pressure: 10 bar.

Artnr	Connection	Weight kg	Opening pressure bar	Description
0551710025	22CU	0,87	2,5	Shut-off check valve combination 5171, 22CU, 2,5 bar
0551710030	22CU	0,87	3,0	Shut-off check valve combination 5171, 22CU, 3 bar
0551710060	22CU	0,87	6,0	Shut-off check valve combination 5171, 22CU, 6 bar
0551710090	22CU	0,87	9,0	Shut-off check valve combination 5171, 22CU, 9 bar
0551710100	22CU	0,87	10,0	Shut-off check valve combination 5171, 22CU, 10 bar

Product Sheet
