0537020000-vvs

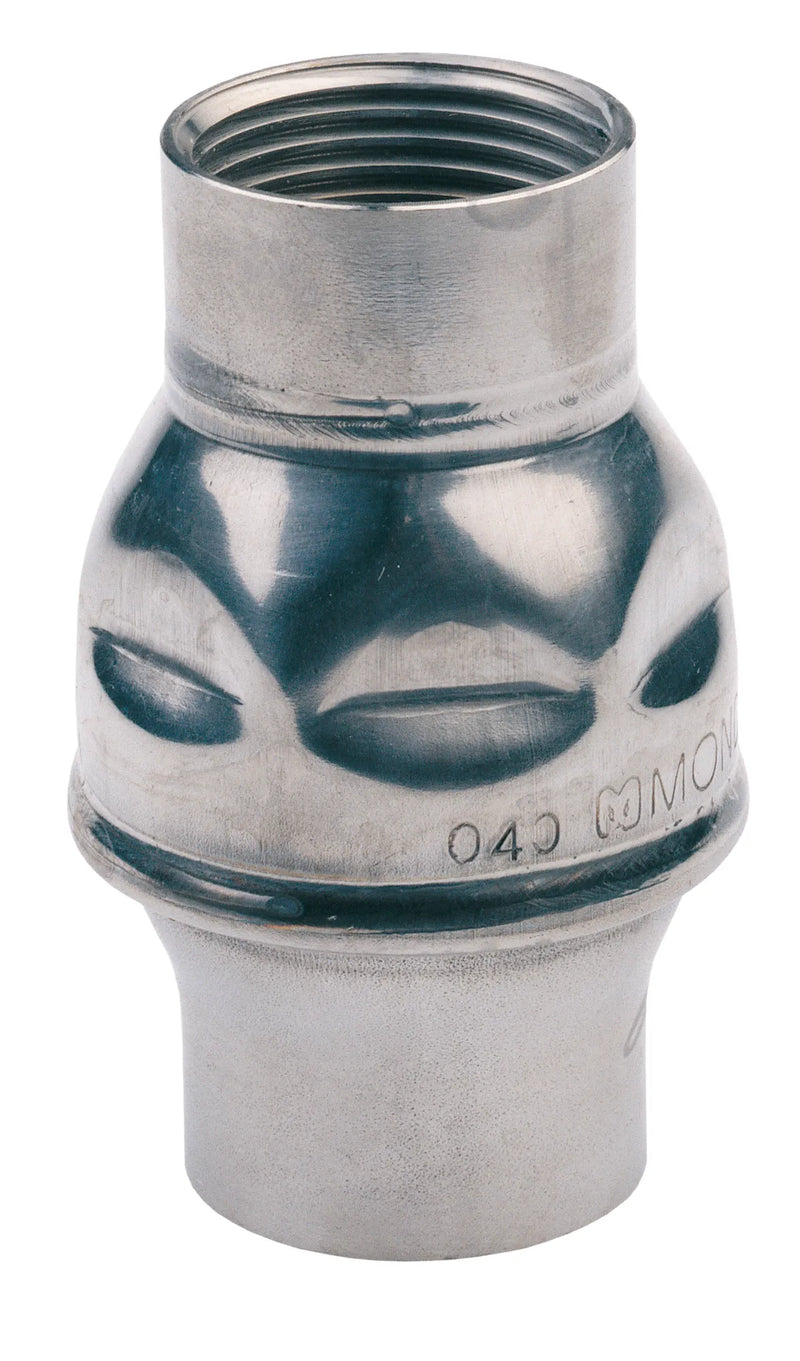

Check valve 37

by Impel EN AB

Material: Stainless steel AISI 316. Working Temperature: -20ºC/+150ºC. Max Working Pressure: See chart.

Artnr	Connection	Pressure max bar	Weight kg	Description
0537020000	3/4"F	35	0,13	Check valve 37-20, 3/4"F
0537025000	1"F	35	0,19	Check valve 37-25, 1"F
0537032000	1 1/4"F	29	0,28	Check valve 37-32, 1 1/4"F
0537040000	1 1/2"F	29	0,39	Check valve 37-40, 1 1/2"F
0537050000	2"F	24	0,70	Check valve 37-50, 2"F
0537065000	2 1/2"F	24	1,43	Check valve 37-65, 2 1/2"F

Product Sheet
