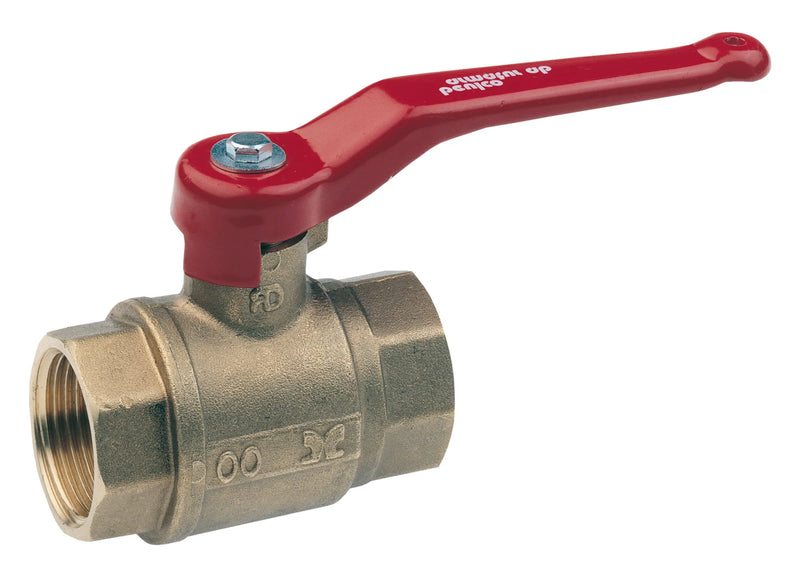

Ball valve 3400

by Impel EN AB

Material: Dezincification resistant brass. Working Temperature: -10ºC/+100ºC. Max Working Pressure: PN 40.

Artnr	Connection	Length mm	Weight kg	Description
0434000150	1/2"F	56	0,24	Ball valve 3400-15 1/2"F, handle
0434000200	3/4"F	66	0,35	Ball valve 3400-20 3/4"F, handle
0434000250	1"F	75	0,51	Ball valve 3400-25 1"F, handle
0434000320	1 1/4"F	85	0,95	Ball valve 3400-32 1 1/4"F, handle
0434000400	1 1/2"F	97	1,36	Ball valve 3400-40 1 1/2"F, handle
0434000500	2"F	109	1,95	Ball valve 3400-50 2"F, handle
