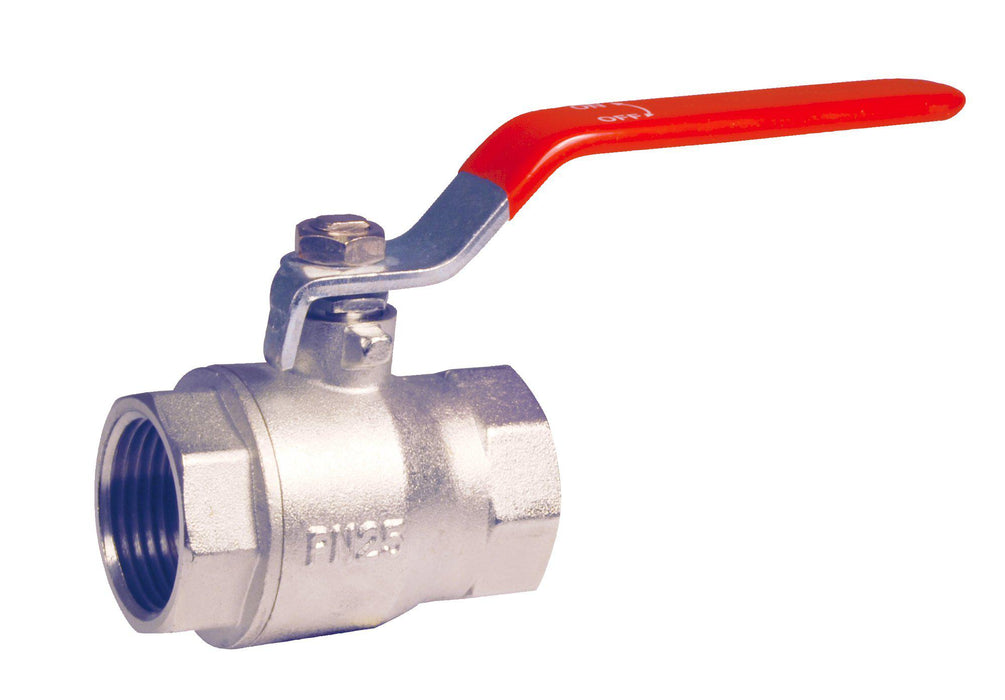

Ball valve 190

Material: Nickel-plated brass. Working Temperature: -10ºC/+100ºC. Max Working Pressure: See chart.
ArtnrConnectionLength mmPressure max barWeight kgDescription
0419000800
1/4"F 42250,12Ball valve 190-8, 1/4"F, lever
0419001000
3/8"F 42250,12Ball valve 190-10, 3/8"F, lever
0419001500
1/2"F48250,18Ball valve 190-15, 1/2"F, lever
0419002000
3/4"F58250,29Ball valve 190-20, 3/4"F, lever
0419002500
1"F67250,47Ball valve 190-25, 1"F, lever
0419003200
1 1/4"F83250,67Ball valve 190-32, 1 1/4"F, lever
0419004000
1 1/2"F89250,98Ball valve 190-40, 1 1/2"F, lever
0419005000
2"F108201,40Ball valve 190-50, 2"F, lever
