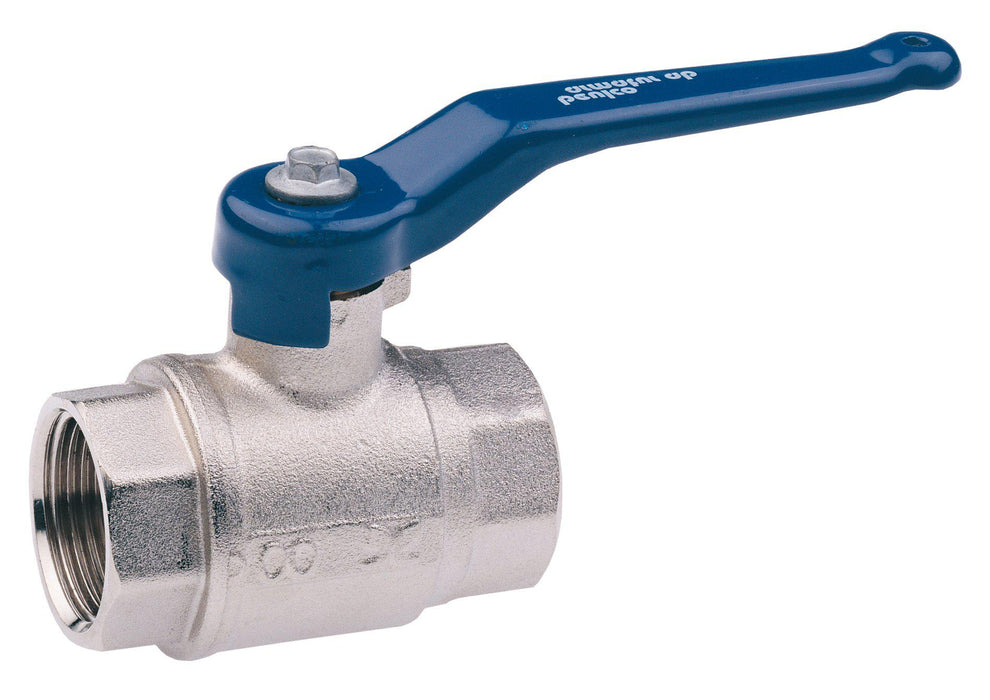

Ball valve 107

by Impel EN AB

Material: Brass. Working Temperature: -10ºC/+100ºC. Max Working Pressure: See chart.

Artnr	Description	Pressure max bar	Weight kg
0410700800	Ball valve 107-8, 1/4"F, handle	40	0,20
0410701000	Ball valve 107-10, 3/8"F, handle	40	0,18
0410701001	Ball valve 107-100, 2"F, handle	16	7,87
0410701500	Ball valve 107-15, 1/2"F, handle	40	0,24
0410702000	Ball valve 107-20, 3/4"F, handle	40	0,35
0410702500	Ball valve 107-25, 1"F, handle	40	0,51
0410703200	Ball valve 107-32, 1 1/4"F, handle	40	0,95
0410704000	Ball valve 107-40, 1 1/2"F, handle	40	1,34
0410705000	Ball valve 107-50, 2"F, handle	40	1,95
0410706500	Ball valve 107-65, 2 1/2"F, handle	40	3,90
0410708000	Ball valve 107-80, 3"F, handle	25	5,30

Product Sheet
